UNIVIEW

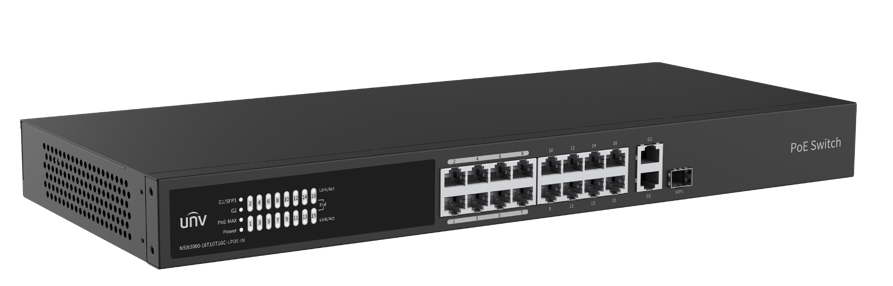

16-port,10/100 2 Uplink port PoE Switch Cloubd Managed Switch

Regular price $790.00WST
Regular price Sale price $790.00WST
Sale Sold out
Tax included. Shipping calculated at checkout.

NSW3000-16T1GT1GC-POE-IN

Cloud Management Switch

• Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
• Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
• Allows to report port abnormal alarms to the software for realtime monitoring.
• Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.



Model: NSW3000-16T1GT1GC-POE-IN
Ports: 16 x 10/100Mbps PoE, 1 x Gigabit RJ45, 1 x Gigabit Combo
Switching Capacity: 7.2 Gbps
Forwarding Rate: 5.36 Mpps
PoE: 250W total, 30W per port max (Ports 1–8 priority)
Standards: IEEE802.3/3u/3z/3ab/3x/3af/3at/3az
MAC Table: 16K
VLANs: Supports up to 32 VLANs (ID 1–4094)
QoS: Port rate limiting, broadcast storm control
Security: Port isolation, IP locking (up to 64)
Dimensions: 440 x 189.8 x 44 mm
Power Supply: 100–240V AC, Max Power 265W
Operating Temp: 0°C to 40°C
Cooling: 1 Fan
Management: Web-based with topology view, PoE control, firmware updates, logs, and device info
