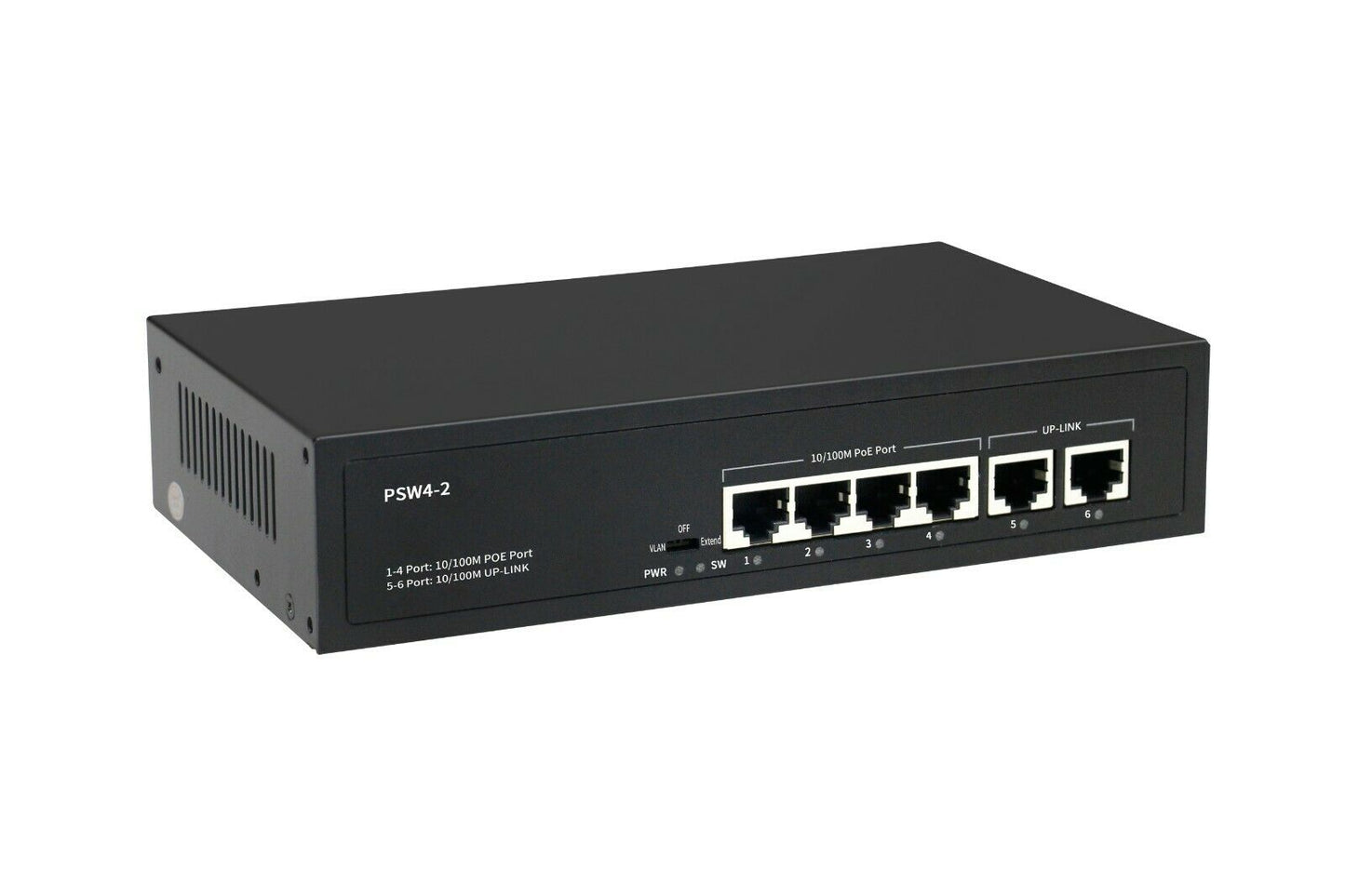

4 Port PoE Switch with 2 Ethernet Uplink, Extend Function Max Output 65W, 803.af

WS$ 325.00 WST
WS$ 325.00 WST
Sale Sold out
Tax included. Shipping calculated at checkout.

◆ IEEE 802.3af/at power on up to 4 PoE ports
◆ Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆ 6x 10/100 Mbps Ports with AutoUplink™
◆ Supports PoE power up to 15.4W / 30W for each PoE port
◆ Supports PoE IEEE 802.3af/at compliant PDs
◆ Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆ Support VLAN Mode, OFF Mode and Extend 250meters
◆ Internal Power Adapter Supply 52V1.25A / 65W

Technical parameter list

Product Name

6-Ports PoE Switch

Model

6-Ports PoE Switch

Connector Type

4 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3x

IEEE802.3af/at

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC48V

Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

Power Supply

Power input: AC110-264V 50/60Hz,  Output: 52V1.25A,  Power Budget: 65W

PerformanceSpecification

Bandwidth: 1.2Gbps (non-blocking)

Address Database Size: 1K

Packet Buffer Memory: 448K

Packet Forwarding Rate: 0.1488M pps/port

MTBF:100,000 hours

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

IEEE 802.3af/at

LED Display

System: power supply; Every Port: connecting, PoE working status

PoE Ports

Port1-4 support POE

PoE Feature

All ports support MDI/MDIX

Led indicator

PWR

Powersupplyindicator(Red)

Lighting：Powered

Un-Light：No Power



SW



DIP indicator(Green)

OFF: Normal

Vlan: Lighting

Extend: Slow flash



1-6



RJ-45 ACT indicator(Green)

Lighting：Connecting

Flashing：Data Transmit

Un-Light：Disconnect

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Certification

CE ,RoHS, FCC, CCC

Transmission Distance

Data transmission distance: 100m,

POE distance upto 250meters with 10M via Cat.6 or more

Physical Parameter

Product Dimension (L*W*H): 200mm*120mm*45mm

Package Dimension (L*W*H): 303mm*190mm*60mm

N.W: 0.52KG

G.W: 0.78KG
