8 Port PoE Switch With 2 Uplink 120W Extend to 250Meter Unmanaged 803.af/at

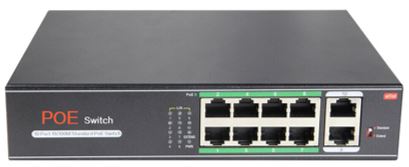

The H1108PLS series is a 10/100Mbps unmanaged PoE switch , it has 8*10/100M PoE ports and
2*10/100M uplink RJ45 ports, Port 1-8 can support IEEE 802.3af/at standard PoE power supply,
single port PoE power up to 30W, and the maximum POE output power is 120W.

10/100 Mbps access, Dual RJ45 port uplink

  —  Provides 8*10/100 Base-TX RJ45 ports and dual uplink power ports, which is more
convenient for users to flexibly set up to meet the network requirements of various scenarios

  —   Support non-blocking wire-speed forwarding.

  —   Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply function

 —    8*10/100 Base-TX RJ45 ports support PoE power supply, which meets the needs of PoE
power supply in various scenarios in the security field

 —    Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices
for power supply without damaging non-PoE devices. The maximum PoE output power is 65W,
and the maximum PoE output power of a single port is 30W

Innovative function (only with function switch type)

 —  Long distance file: When opening, the speed of 1-8 port is reduced to 10M. With the existing
twisted pair cable, the transmission limit of the twisted pair line can be broken, and the
transmission distance can reach 250 meters; on the other hand, It can solve the problem of
poor transmission caused by line aging.

—  Video monitoring mode: Open with the long distance switch, 1-4 ports are isolated from each
other but communicate with 9-10 ports to prevent DHCP conflicts, optimize port cache
utilization, and reduce broadcast storms.

The equipment is stable and reliable

  —   The host has low power consumption, no fan and silent design, galvanized steel and metal
casing, and excellent heat dissipation to ensure stable operation of the product

  —   The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe
and reliable.

The equipment is stable and reliable

  —   The host has low power consumption, no fan and silent design, galvanized steel and metal
casing, and excellent heat dissipation to ensure stable operation of the product

  —   The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe
and reliable.

Interface Characteristics

Fixed Port

8*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX uplink RJ45 ports (Data)

Ethernet Port

Port 1-8 can support IEEE802.3af/at standard PoE power supply

Functional Switch

1*(Extender+ CCTV)
Note: when the switch state changes, it must be restarted before the PoE
switch function can take effect
