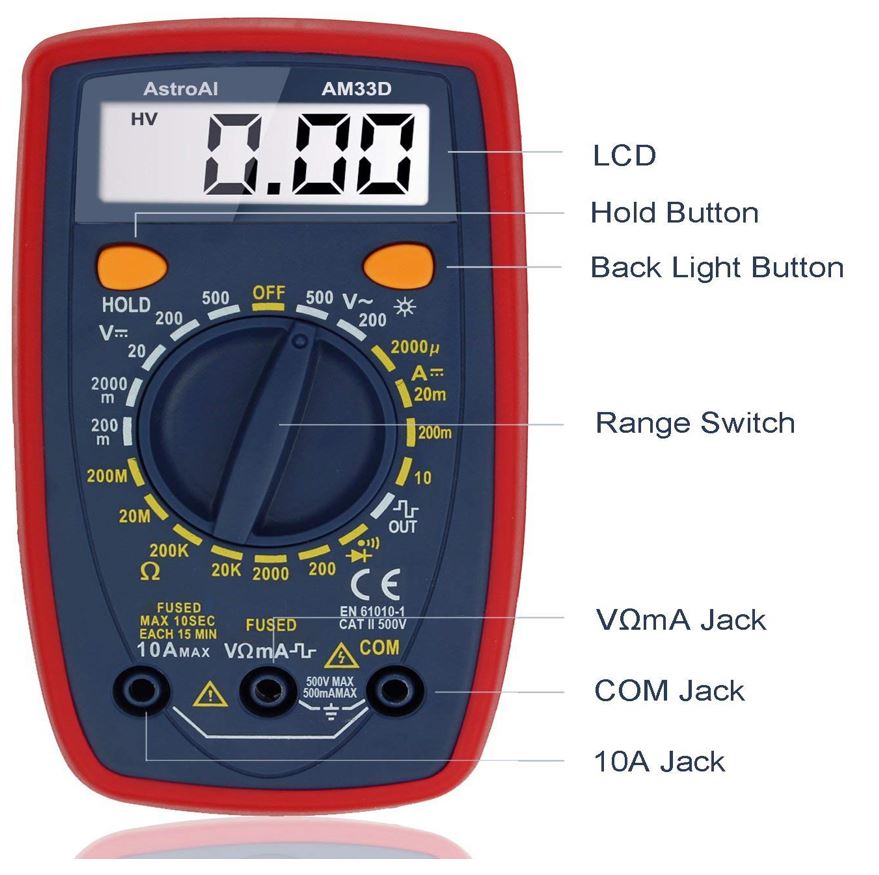

AstroAI Digital Multimeter with Ohm Volt Amp and Diode Voltage Tester Meter (Dual Fused for Anti-Burn)

$165.00WST
$165.00WST
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications
Max.display: 1999, 3 1/2 digits
Range selection: Manual ranging
Overload display: "1" is displayed
Sampling Speed: 2 times per second
Low Battery Indication
Power: 1 x 9V 6F22 Battery Included
Diode Test: Yes
Continuity Test: Yes
Square Wave Output: Yes
Dimensions: 5.1" x 2.8" x 1.4"
Safety/Compliances: IEC61010 CAT.I 600V, CAT.II 300V, double insulation
DC Voltage: 200mV/2000mV/20V/200V ±(0.5%+3), 500V (1%+5)
AC Voltage: 200V/500V ±(2%+10)
DC Current: 2000μA/20mA ±(1.8%+2), 200mA ±(2%+2), 10A ±(2%+10)
Resistance: 200Ω ±(1%+10), 2000Ω/20KΩ/200KΩ ±(1%+4), 20MΩ ±(1%+10), 200MΩ ±[5%(reading-10)+10]

Package Includes
1 x AstroAI AM33D Digital Multimeter
1 x 9V 6F22 Battery
2 x Test Leads
1 x User Manual
