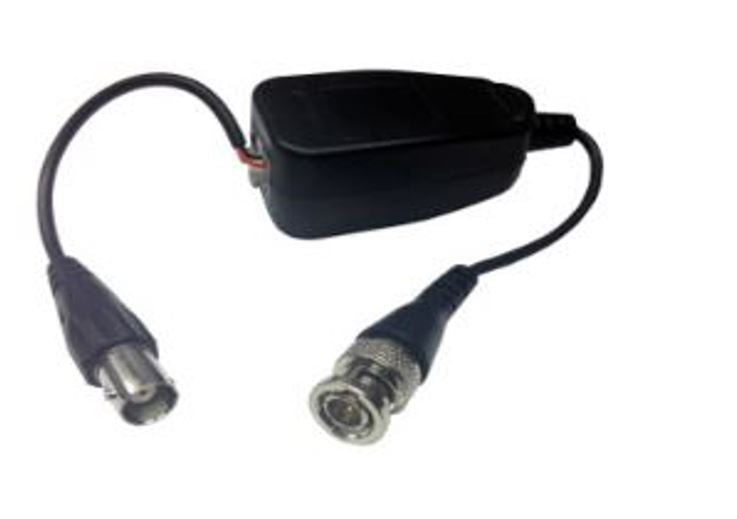

BNC Ground Loop Isolator Security CCTV Camera DVR Video Balun CAT5e

This CCTV Video Ground Loop Isolator reduces “Ground Loop Interference” within CCTV signals and can easily be installed in new or existing systems. This unit is useful where a video signal is being transmitted via cable between points with different ground potentials. The differing ground potentials can cause the ground loop interference, and in turn can distort your CCTV feed.

This particular unit also has the added benefit of doubling as a Passive BNC Video Balun Transceiver over CAT5e/6 Cable. Disconnect the female BNC pigtail from the “press-fit” terminal block and you will be left with a BNC Video Transceiver Balun. Simply terminate your CAT5e/6 cable in the screw less terminal block. The ground loop interference rejection will work the same whether you are using the female BNC or the CAT5e/6 cable.

Features:

Connectors: BNC Male to BNC Female with mini pigtail cables on each side

Built-in Passive Video Balun over CAT5e/6 UTP Cable (Remove the BNC Female Pigtail from the screw less terminal block to use the UTP Balun)Prevents video distortion caused by ground loop interference (i.e.: cross talk, picture tearing, rolling lines)Built-in TVS (Transient Voltage Suppressors) for surge protection No power required FCC Compliant ROHS Compliant

Specifications:

Insertion Loss: .5dB

Frequency Response: 0-3dB at 10MHz

Input/output Resistance: 75 ohms

Insulation Resistance: 100 ohms
