UNIVIEW

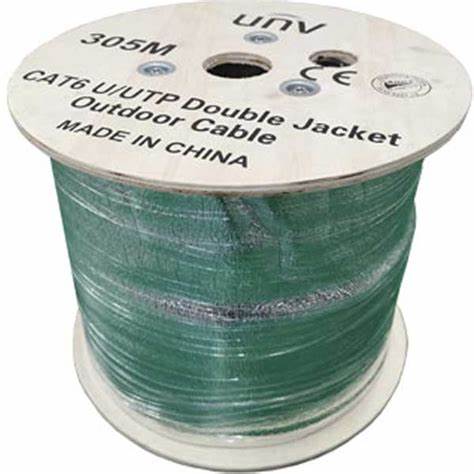

CAT6/UTP/305m Outdoor 99.99%OFC/0.52mm Outdoor"

Regular price WS$ 739.00 WST
Regular price Sale price WS$ 739.00 WST
Sale Sold out
Tax included. Shipping calculated at checkout.

Product model  CAB-LC3110B-E-IN

Product specification  HSYV-6 4×2×0.52

Test Standard  ISO/IEC11801、TIA-568-C.2、 YD/T1019

Conductor  Material  OFC(Oxygen free copper)

AWG  24

Nom.O.D.(mm)  0.52±0.03 mm

DC resistance  ≤95 Ω/km

Insulation  Material  HDPE

Thickness  0.2±0.02 mm

Diameter  0.93±0.05 mm

Color  Blue/White- Blue  Green/White-Green

Orange/White-Orange  Brown/White-Brown

Pitch  Offset pitch  ≤20 mm

Cable pitch  ≤120 mm

Sheath  Material(IN Jacket)  PVC(complies RoHS/REACH)

Material(OUT Jacket)  LDPE

External O.D.  6.9±0.3 mm

Color  Black

Tensile strength(PVC)  >13.5 Mpa

Thickness  0.55±0.05 mm

Surface Printing  Letter height  3.0±0.3 mm

Color  White

Print error

& Space  1±0.005 m

Case number  Yes

Packing  Wooden shaft

Packing length  305±1m

Rip-cord  Yes  Crossing backbone  Yes

Ambient temperature  -20℃~60℃
