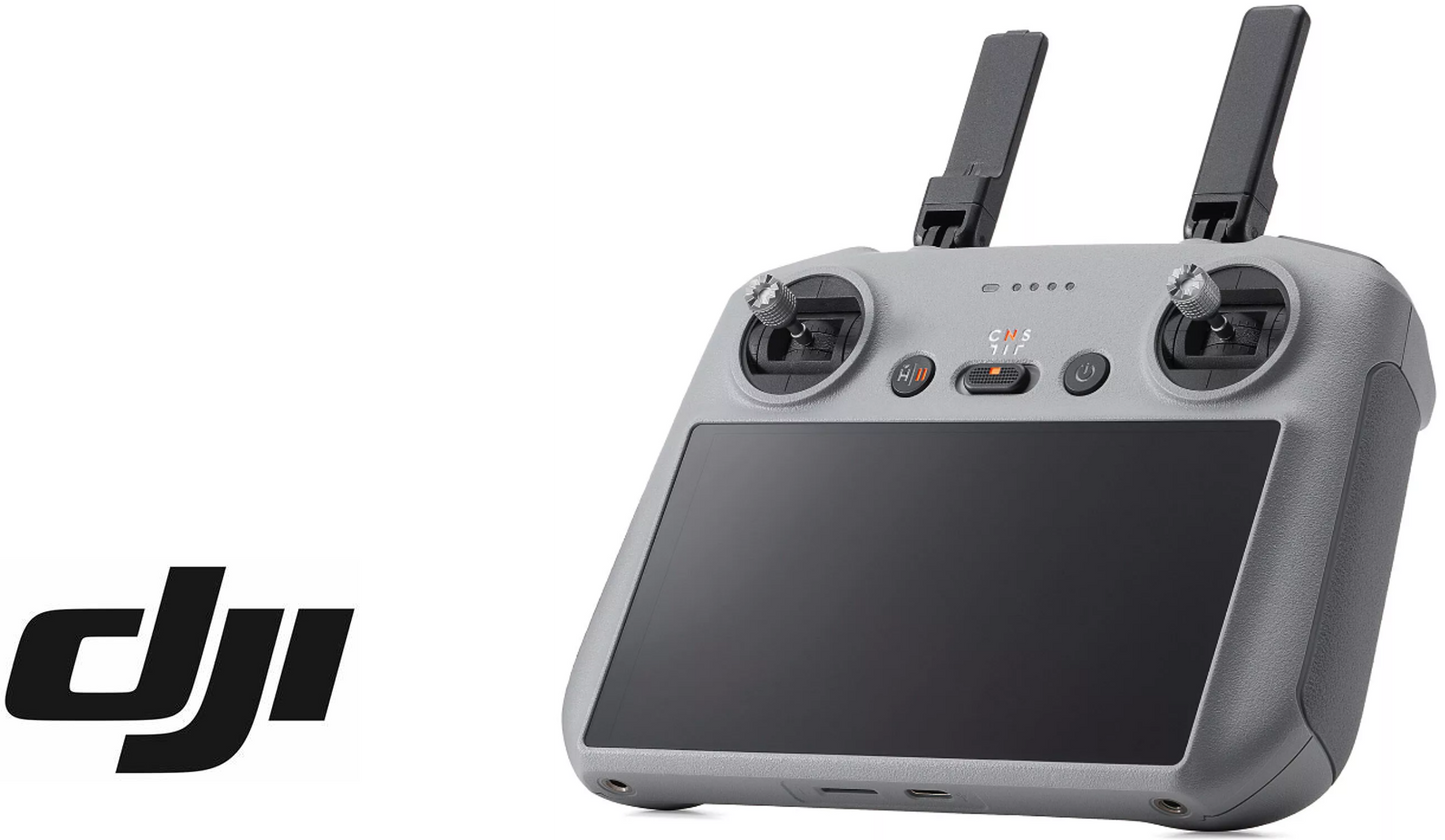

DJI RC 2 Smart Controller for DJI Air 3

DJI RC 2 Smart Controller

Screen: 5.5-inch FHD display (1920×1080), 700 nits brightness, 60fps frame rate, 10-point multi-touch.

Battery: 18650 Li-ion, 22.32Wh (3.6V, 3100mAh×2).

Charging: Supports up to 9V/3A fast charge, 1.5 hours charging time.

Operating Time: Max 3 hours (tested in a 25°C environment with DJI Air 3).

Operating Temperature: -10° to 40°C.

Storage: 32GB internal storage (approx. 21GB available), expandable with microSD cards (UHS-I Speed Grade 3 or above).

Dimensions: 168.4×132.5×46.2 mm (without control sticks), 168.4×132.5×62.7 mm (with control sticks).

Weight: Approx. 420 g.

Supported Aircraft Models: DJI Mini 4 Pro, DJI Air 3, DJI Air 3S, DJI Neo

Powerful Processor

DJI RC 2 is equipped with a powerful processor that features improved CPU and GPU performance. This ensures ultra-smooth app and system operation, delivering a seamless and intuitive control experience with every flight.

Video Transmission System

The next-gen DJI O4 video transmission technology supports 2.4GHz, 5.1GHz, [1] and 5.8GHz frequency bands, providing DJI RC 2 with enhanced anti-interference capabilities. When paired with drones that are compatible with O4, such as DJI Air 3, DJI RC 2 can achieve HD low-latency video transmission within a 20km max range. [2]

2T4R Antennas

DJI RC 2 integrates two built-in and two external antennas, supporting a 2T4R system. This doubles the number of both transmitter and receiver antennas compared to the previous generation DJI RC, enhancing signal strength and further improving transmission performance for smooth control and safer flight.

FHD Screen

DJI RC 2 features a 5.5-inch 1920×1080 built-in FHD screen

capable of maintaining 700 nits of high brightness.

Storage Capacity

DJI RC 2 comes with 32 GB of built-in storage, [3] allowing for

direct screen recording and caching. It also supports microSD

card expansion for an additional storage option.

Light and Compact

Even with improved processing and video transmission performance,

added antennas, and an active-cooling design, DJI RC 2 weighs just

420 grams. [4] This ensures a comfortable grip and effortless control,

especially during extended use.
