UNIVIEW

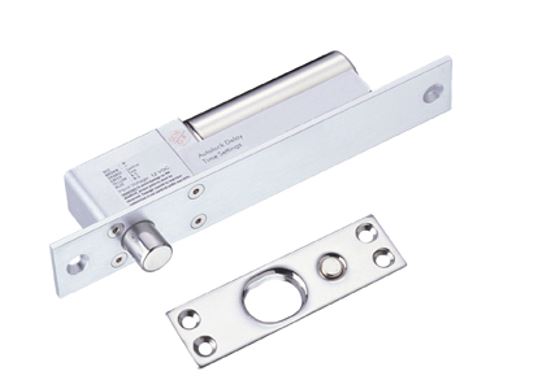

Electric Bolt Lock (Fail Safe)
Couldn't load pickup availability
Ultra-low power consumption design, more durable and environmentally friendly.
MOV surge protection.
High-strength aluminum alloy lock body, stainless steel bolt.
Ultra-low temperature design, more secure and durable.
500,000 power-on aging tests.
Door status feedback.
Parameter Description
Parameter Description
Operation mode Failsafe
Operating environment - Operating temperature: -30°C to +60°C <br> - Operating humidity: ≤95%
Power supply DC12V±10%
Operating current 110mA
Signal output mode Switch
Delayed door opening 0/3/6/9s
Lock body dimensions (L×W×D)(mm): 205×35×42
Lock strike dimensions (L×W×D)(mm): 87×24×1.5
Material Aluminum alloy
Weight 0.72kg
Door support Wooden door, glass door, metal door, etc.
Attestation CE/FCC/ROHS
