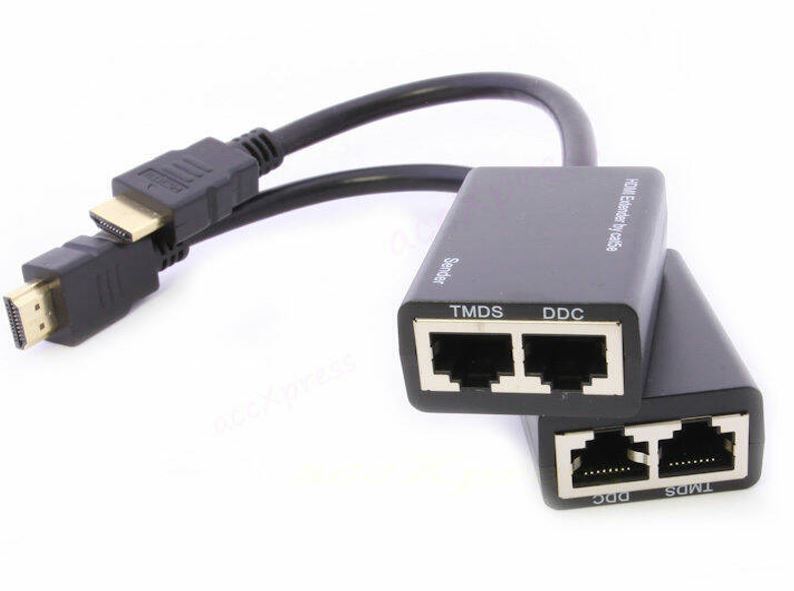

HDMI Over RJ45 CAT5e CAT6 UTP LAN Ethernet Extender Repeater max 30 Meters

HDMI Extender Using CAT5E OR CAT6

This HDMI Extender by CAT 5e/6 uses two peices of UTP cable with cross stand inside to extend the HDTV display up to 30 meters for 1080p. It breaks the limitation of the HDMI cable transmission length, and CAT 5e/6 has more flexibility abd convenience in cable construction.

This product offers solution for residential consumers:HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns data center control, information, data center control, information distribution, conference room presentation, school and corporate training environments.

Features

CAT 5e/6 cable can substitute HDMI cable to achieve 30 meters long distance transmission

Follow the standard of IEEE-568B

Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.

Support full 3D pass through

Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth

Supports HDCP

Support unccompressed audio such as LPCM

Supports compressed audio such as DTS digital, Dolby Digital.

Specifications:

Input Video Signal: 5 Volts p-p (TTL)

Output Video:HDMI

HDMI Input/Output Connector:Type A 19 pin

Video Amplifier Bandwidth:1.65Gbps/165MHz@50/60Hz

Out Resolutions:480~1080i@50&60Hz, 480~1080p@50&60Hz

Dimension:81mm(L)x 45mm(W)x 25mm(H)

Weight:246g.

Operating Temperature:O °C to +70°C

Power Supply:no power need
