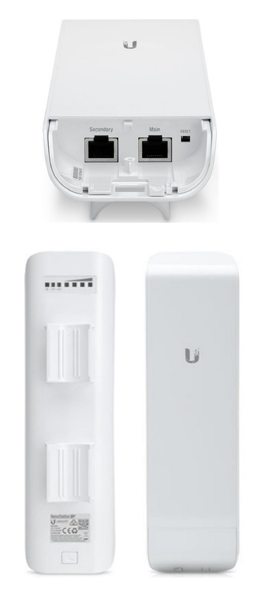

NSM5 Ubiquiti airMAX NanostationM 5GHz Station

Technical Specifications

Dimensions  294 x 31 x 80 mm

(11.57 x 1.22 x 3.15″)

Weight  400 g (14.11 oz)

Power Supply (PoE)  24V, 0.5A

Max. Power Consumption  8W

Power Method  Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Frequency

Worldwide

USA

USA DFS  5170-5875 MHz

5725-5850 MHz

5250-5850 Mhz

Gain  14.6-16.1 dBi

Networking Interface  (2) 10/100 Ethernet Ports

Processor Specs  Atheros MIPS 74Kc, 560 MHz

Memory  64 MB DDR2, 8 MB Flash

Frequency  5 GHz

Cross-pol Isolation  22 dB Minimum

Max. VSWR  1.6:1

Beamwidth  43° (H-pol) / 41° (V-pol) / 15° (Elevation)

Polarization  Dual Linear

Enclosure  Outdoor UV Stabilized Plastic

Mounting  Pole-Mount (Kit Included)

Operating Temperature  -30 to 75° C (-22 to 167° F)

Operating Humidity  5 to 95% Noncondensing

Wireless Approvals  FCC Part 15.247, IC RS210, CE

RoHS Compliance  Yes

Shock & Vibration  ETSI300-019-1.4
