CompTech Ltd

Pair CCTV Coax BNC Video & Power Balun Transceiver to CAT5e 6 Surge Protection

Regular price $45.00WST
Regular price Sale price $45.00WST
Sale Sold out
Tax included. Shipping calculated at checkout.

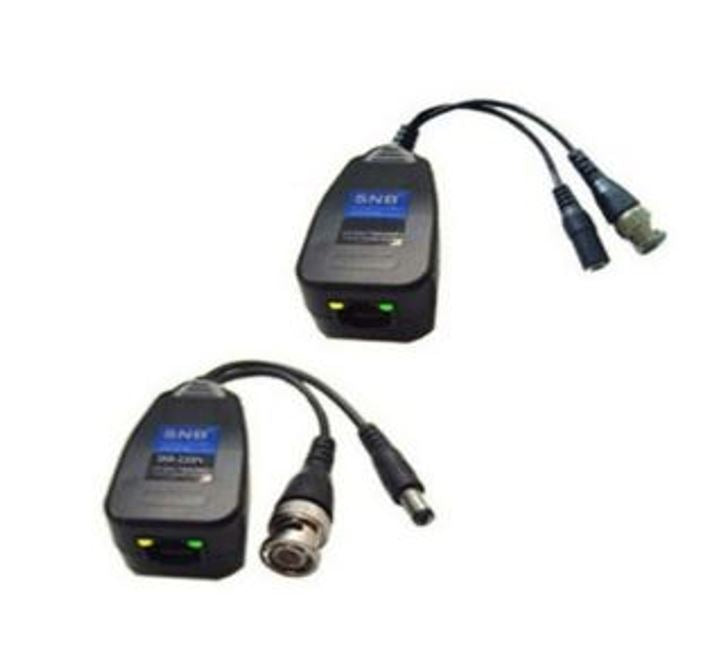

CCTV BNC Video & Power Baluns



Transfer video and power via Cat5e/Cat6 ethernet connections with this single channel passive video/power baluns. This kit features one pair of transceiver units.




Features

Quantity: 8 Pair (16 pcs)

1-Channel Passive Video & Power Transceiver (Pair)

Power and Video signals are routed via Cat5e/Cat6 Cable with RJ45 connectors

Transmit power signal up to 750ft (250m)

Male BNC with extended mini-coax pigtail

Compatible Video Formats: NTSC, PAL, and SECAM

Real-Time transmission

No power required

Exceptional interference rejection

60dB Crosstalk and Noise immunity

Installs in seconds

LED Lights indicating Power Input and Surge Protection

Compact size for easy installation

ROHS Compliant

FCC Compliant

Technical Specifications

Connectors: Male BNC and RJ45 Female Ports

Frequency Response: DC to 8MHz

Attenuation: 0.5dB

CMRR (Common Mode Rejection Ratio): 60 dB

Impedance for BNC: 75 ohms

Impedance for RJ45: 100 ohms

Material: ABS Plastic
