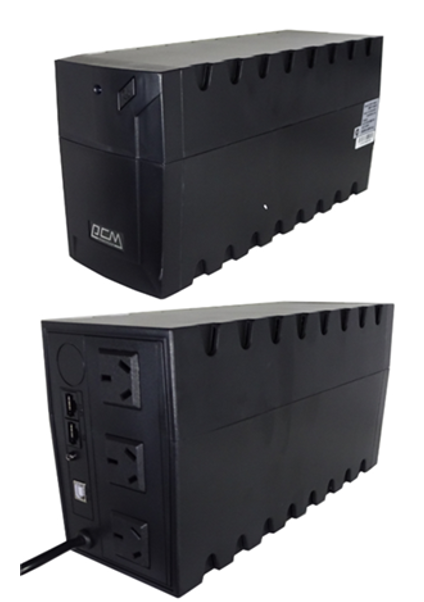

POWERCOM RAPTOR 1000VA LINE INTERACTIVE UPS

Specifications

Input  Capacity VA/W  1000/600

Voltage  220V/230V/240V ±25% at line input

Frequency  50Hz to 60Hz ±10% auto sensing

Output  Voltage (on battery)  Simulated sine wave at 220V/230V/240V ±5%

Frequency (on battery)  50Hz/60Hz ±1Hz

Voltage Regulation (AVR)  AVR with 1 step boost and 1 step buck

Transfer Time  2/4 milliseconds, including detection time (typical)

Protection  Short Circuit/Unit Input  Optional - fuse or overload and short circuit protection

Overload Protection  UPS automatic power off if overload exceeds 110% of nominal at 60 seconds and 130% at 3 seconds

Telephone Protection  RJ45

Short Circuit Protection  N/A

Battery  Type  Sealed, maintenance-free lead acid battery

Typical recharge time  4 hours (to 90% of full capacity)

Battery quantity  12V 9Ah x1

Battery protection  Auto Discharge Protection

Interface  Communication Interface  LED Indicator / USB-B Type

Alarm  Battery Backup  Buzzer beeps under backup mode

Battery Low  Buzzer beeps under battery low

Overload  Buzzed beeps on overload

Environment  Ambient Operation  0 - 95% humidity (non-condensing), 0 - 40°C

Audible Noise  <40dBA (1 metre from surface)

Storage Condition  2000 metres maximum elevation

Physical  Input Inlet  IEC 320

Receptacles  3x Outlets (ANZ 3 Pin Sockets)

Dimensions (mm)  100 (w) x 278 (d) x 140 (h)

Net Weight  5.4kg

Shipping Weight  6.0kg

*1 Year Warranty
