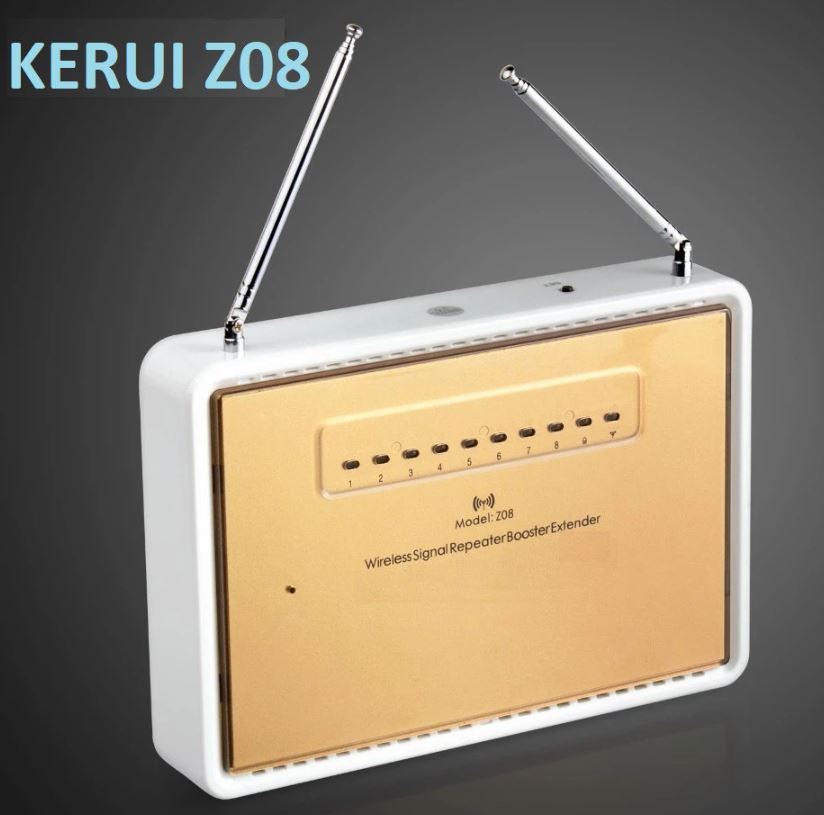

Remote wireless signal transfer repeater

ADDON FOR KERUI MAIN UNIT
Product Description
Regular Price: RM230.00

Re-transmit the signal to the alarm host, extend the transmitting distance indirectly, increase the control distance of alarm system.
Application: when the distance between the alarm host and detector is too long or have too more obstacles.

Feature
1． Built-in high quality voice chip, operation with voice prompt.
2． 8 wireless defense zones, when 7 and 8zones on alarm status; this device can be used as a on-site alarm.
Z9-Z10 is wired defense zones, can be NC or NO alarm .Max support 100pcs wireless detectors and 20pcs
remote control.
3． Wireless intelligent study coding, compatible with PT2262 normal encoding (Resistance 1.5M-4.7M)
and a million groups encoding (Resistance of 150K-470K)
4． Built-in Ni-Hi rechargeable battery and automatically switchable upon power failure
5． EEPROM information protection, information never lost, to ensure information security

Specifications
1． External power supply: DC 9V-15V；
2． Build-in Battery: Ni-Hi AAA*6 DC 7.2V
3． Static Current:<25mA
4． Working Current:<450mA
5． Receiving and transmitting frequency: 315/433 MHz or FM230MHz
6． Maximum number of the remote control: 20pcs
7． Maximum number of the wireless detector: 100pcs
8． Receiving /Transmitting Distance:

Wireless Frequency Receiving Distance Transmitting Distance
315/433MHz---230MHz 200m 3000m
315/433MHz---315/433MHz 200m 1000m
230MHz ---315/433MHz 3000m 1000m

9. The remote control detector: Compatible 2262 and 1527 coding, Preferred resistance: 2262/1.5-4.7M,1527/150-470K
10．Defence Zones: 8 wireless zones,2 wired zones
11．Power Output: DC12V, 500mA
12．External Siren: DC12V, 300mA
13．Working Temperature: -20-+55
14．Size: 180×125×37mm
