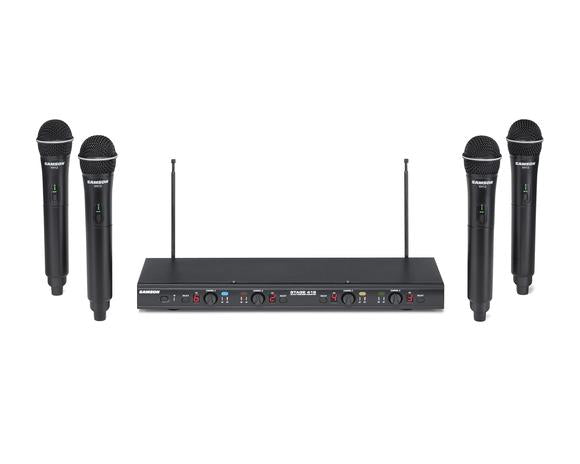

Samson Stage 412 Quad Channel wireless mic system

Stage 412 Wireless System

• Quad-channel VHF (173MHz–198MHz) wireless system
• Six operating frequencies per channel
• Up to three simultaneous systems (region dependent)
• IR sync wirelessly matches receiver and transmitter frequency
• 200' (60m) operating range (line-of-sight)
• AC adapter included

SR412 Wireless Receiver

• Rugged metal chassis
• Dedicated Volume controls for each channel
• Four 1/4" independent channel outputs
• Three balanced XLR mixed outputs

VH12 Handheld Transmitters

• Four Q6 Dynamic Microphone capsules
• Each offers up to 10 hours of operation via two AA batteries (not included)

Specifications

Stage 412 Wireless System

• Operating Frequency: VHF 173MHz–198MHz
• Microphone Channels: 4
• Frequencies per Channel:  6
• Operating Range: 200' (60m)
• Frequency Response: 80Hz–15kHz
• Tone Key Frequency: 30kHz

SR412 Wireless Receiver

• Dynamic Range: 100dB
• Maximum Output: 1.37V
• Output Connectors: Two 1/4" (6.3 mm) unbalanced, three XLR balanced
• Audio Output Levels: -12dB
• Power Supply: 100-240V, 50/60Hz, 0.4A, Output: DC 15V, 800mA
• Dimensions: 17" x 6.75" x 1.5"  (430mm x 170mm x 40mm)
• Weight: 3.08lb (1.4kg)

VH12 Handheld Transmitters

• Microphone Element: Q6 Dynamic
• Pickup Patter: Cardiod
• RF Power Output: 10mW
• Typical Battery Life: 10 hours
• Current Consumption: 120 mA typical
• Dimensions (each): ø2.16" x 10" (ø55mm x 255mm)
• Weight (each): 0.48lb (0.22kg)
