TP-LINK

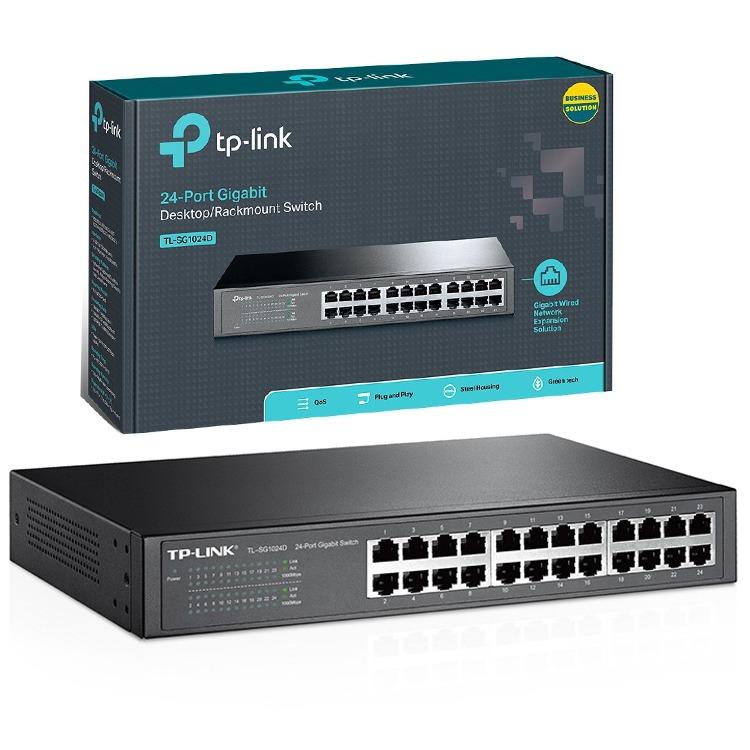

TP-Link 24-Port Gigabit Ethernet Rackmount Unmanged Switch (TL-SG1024D)
Couldn't load pickup availability
Features
24 10/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 18%
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
STANDARDS AND PROTOCOLS | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
INTERFACE | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
NETWORK MEDIA | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
FAN QUANTITY | Fanless |
PHYSICAL SECURITY LOCK | No |
POWER SUPPLY | 100-240VAC, 50/60Hz |
POWER CONSUMPTION | Maximum: 13.1W (220V/50Hz) |
DIMENSIONS ( W X D X H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
MOUNTING | Rack Mountable |
MAX POWER CONSUMPTION | 13.08W(220V/50Hz) |
MAX HEAT DISSIPATION | 44.63BTU/h |
PERFORMANCE | |
---|---|
SWITCHING CAPACITY | 48Gbps |
PACKET FORWARDING RATE | 35.7Mpps |
MAC ADDRESS TABLE | 8K |
JUMBO FRAME | 10KB |
GREEN TECHNOLOGY | Yes |
