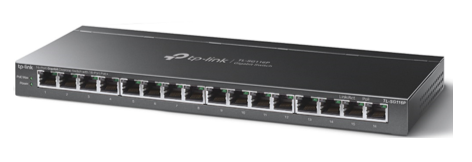

TP-Link TL-SG116P | 16 Port Gigabit PoE Switch | 16 PoE+ Ports @120W | Plug & Play

HARDWARE FEATURES

Interface

- 16x 10/100/1000Mbps RJ45 Ports

- AUTO Negotiation

- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity - Fanless

External Power Supply

External Power Adapter (Output: 53.5 VDC / 2.43 A)

Packet Forwarding Rate 23.8 Mpps

PoE Ports (RJ45)

- Standard: 802.3 af/at compliant

- PoE Ports: Ports 1-16

- Power Supply: 120 W

Mac Address Table

8K, Auto-learning, Auto-aging

Switching Capacity

32 Gbps

Dimensions ( W x D x H )

11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Max Power Consumption

- 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)

- 142.51 W (220 V / 50 Hz with 120 W* PD connected) /144.28 W (110 V / 60 Hz with 120 W* PD connected)

Max Heat Dissipation

- 39.85 BTU/h (220 V / 50 Hz no PD connected) /39.31 BTU/h (110 V / 60 Hz no PD connected)

- 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

SOFTWARE FEATURES

Advanced Features

- Compatible With IEEE 802.3af/at Compliant PDs

- Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)

- Priority Mode Button (Ports 1-4)

- Isolation Mode Button (Ports 1-7 / 8-14)

- PoE Auto Recovery (Ports 1-16)

- Mac Address Auto-Learning And Auto-Aging

- IEEE 802.3x Flow Control

- 802.1p/DSCP QoS

- IGMP Snooping

Transfer Method

Store-And-Forward
