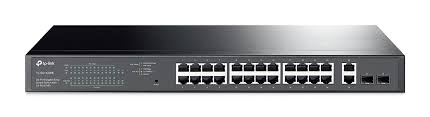

TP-Link TL-SG1428PE 24 Port Gigabit PoE Switch Easy Smart Managed 24 PoE

TP-Link TL-SG1428PE - 28-Port Gigabit Easy Smart PoE+ Switch

Ports:

24 × Gigabit PoE+ RJ-45 ports

2 × Gigabit RJ-45 uplink ports

2 × Gigabit SFP fiber slots

PoE Specifications:

PoE Standard: IEEE 802.3af/at (PoE+)

Total PoE Budget: 250W

Up to 30W per port (depending on device)

PoE Auto Recovery & Intelligent Power Management

Performance:

Switching Capacity: 56 Gbps

Forwarding Rate: 41.7 Mpps

MAC Address Table: 8K entries

Packet Buffer: 4.1 Mbit

Jumbo Frame Support: 9KB

Management Features:

Web-based Easy Smart management

VLAN (802.1Q, MTU, Port-based)

QoS (802.1p, DSCP, Rate Limiting)

IGMP Snooping v1/v2/v3

Port Mirroring, Storm Control

Link Aggregation (Static LAG)

Cable Diagnostics, Loop Prevention

Hardware:

Rackmount 1U (440 × 220 × 44 mm)

2 Internal Cooling Fans

Power Supply: 100–240V AC, 50/60Hz

Power Consumption:

Max: ~304.7W (with full PoE load)

Idle: ~27W

Heat Dissipation: Up to ~1,039 BTU/h

Operating Conditions:

Temperature: 0°C to 50°C

Humidity: 10%–90% non-condensing

*1 Year Warranty
