VMS UNICORN

Unicorn

Introduction

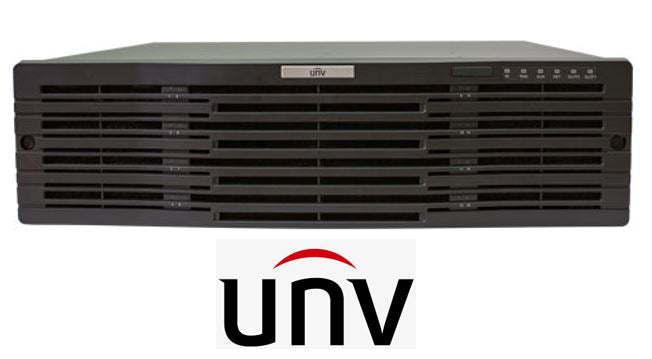

The Unicorn is an integrated surveillance platform with video input, storage, transfer and device management functions designed
specifically for digital surveillance applications. The Unicorn has adopted audio/video compression and decompression, embedded system,
storage, network, and technologies and it is suitable for security surveillance scenarios such as residential areas, buildings, campus, hotels,
and shopping malls etc.

• Third-part IP Cameras supported with standard ONVIF
  • Support for mobile clients (iOS & Android) access
  • Up to 1000 device/2000 channels connections
  • Unified management of NVR, IPC, decoder, network keyboard and cloud devices
  • 16 SATA HDDs，Up to 14TB each HDD
  • 16×1080P decoding outputs in 3 screens
  • Support for live view, playback, sequence, video wall, E-map, two-way audio, alarm plan
  • Support of network fault tolerance, multi-IP configuration and load balancing

Key Features
Stability: Linux OS, dual-BIOS, redundant power, two-server hot standby
Compatibility: Third-party IP Cameras supported with standard ONVIF and RTSP
Access: Browser/Server, Client/Server and mobile clients (both iOS and Android)
Connection: 1000 device connections, up to 2000 channels of high-definition network videos
Management: Unified management of IPC, NVR, face recognition terminal, decoder, network keyboard, cloud devices, alarm control
panel and door access control, support devices’ configuration import/export
Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 672TB storage, recording backup, IPSAN storage
Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards
inserted
Service: Live view, playback, sequence, video wall, GIS map, two-way audio, and alarm plan
Reliability: Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP
configuration, load balancing, secure password and IP address filtering
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status,
HDD status, online users, bandwidth usage, packet loss rate, log query

*1 Year Warranty
